High-Strength Defensive Barrier
Product Overview
The Defensive Barrier, also known as Foldable Filled Defensive Barrier, is a high-strength modular protection system engineered to withstand explosive shocks, ballistic attacks, and natural disasters. Widely used in military installations, border security, public safety, emergency response, and critical infrastructure protection, this product delivers outstanding security, flexibility, and reusability.

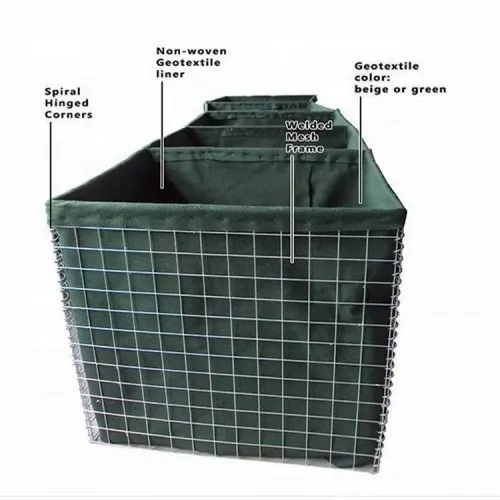

Core Structure and Material Advantages

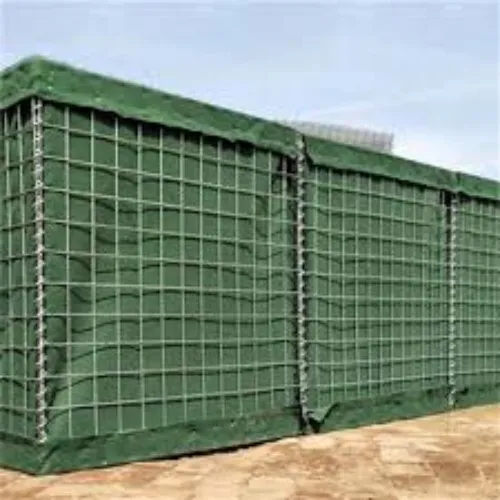

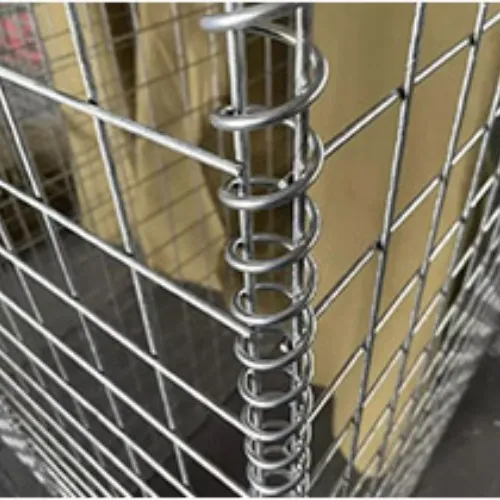

▶ Frame Structure
Material: High-strength low-carbon steel wire
Manufacturing: Automated electric welding into mesh panels
Mesh Size: Typically 76.2mm × 76.2mm or customized dimensions
Wire Diameter: Options of 4mm, 5mm, or 6mm or customized dimensions
Features: High overall rigidity, excellent impact resistance, and strong deformation resistance
▶ Galvanized Corrosion Protection
Our advanced galvanizing technology significantly enhances durability and corrosion resistance in harsh environments:
Hot-dip Galvanizing Standards: Complies with ASTM A123 / EN ISO 1461
Zinc Coating Thickness: ≥ 85 μm (up to 100 μm standard; customizable up to 120 μm)
Neutral Salt Spray Test: Exceeds 1000 hours without red rust
Expected Service Life: Over 20 years in marine/coastal environments and more than 30 years in dry inland areas

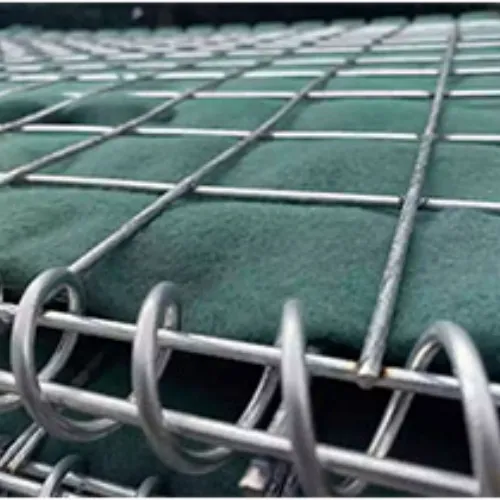

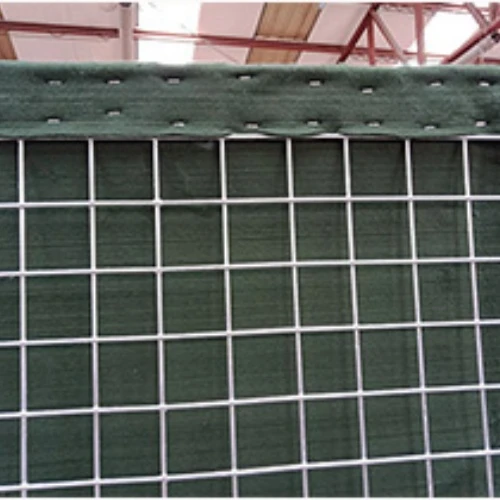

▶ Protective Inner Lining
Material: High-strength non-woven geotextile or flame-retardant synthetic fabric
Function: Prevents sand and soil leakage, enhances blast wave absorption, fire-resistant
Color Options: Sand, military green, gray, black, with optional camouflage coatings
The Benefits of Defensive Barrier
✅ Superior blast and impact resistance, effectively mitigating explosive shockwaves and debris, reducing risks to personnel and property
✅ Modular design for rapid assembly, relocation, and reuse, adaptable to various terrains and deployment needs
✅ Reusable multiple times, providing economic and environmental advantages
✅ Well-ventilated mesh structure ensuring visibility and airflow, facilitating observation and communication
✅ Versatile applications ranging from military fortifications to flood barriers, border walls, and temporary strongholds
Applications
|
Application Area |
Function Description |
|

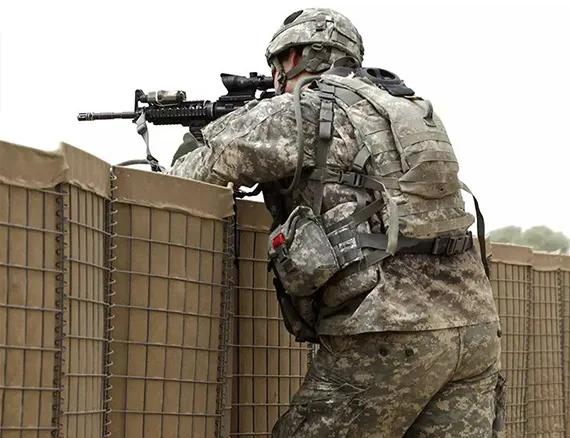

Military Defense |
Guard posts, camp fences, artillery positions, explosive storage protection |
|
Urban Security |
Blast barriers for banks, airports, government buildings, prisons |
|
Emergency Response |
Rapid deployment for flood or earthquake relief, temporary dikes or shelters |
|
Public Events |
Safety perimeters at large-scale events, crowd control barriers |
Installation and Deployment Guide
Site Preparation: Clear debris and ensure level ground.

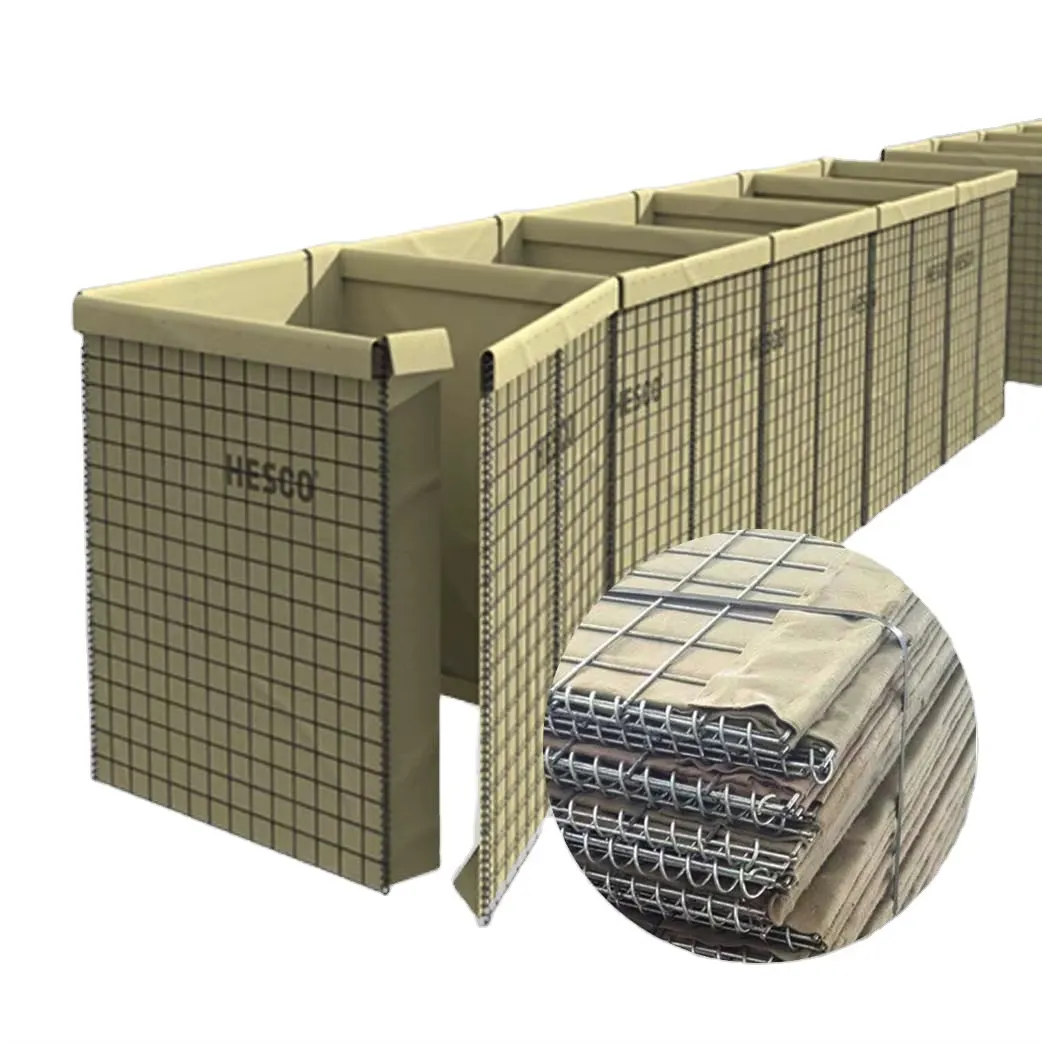

Unfold Barrier Units: Expand folded defensive barriers along planned layout.
Connect Units: Securely fasten units using bolts, pins, or clamps.
Deploy Inner Lining: Spread lining tightly against interior walls to prevent filler leakage.

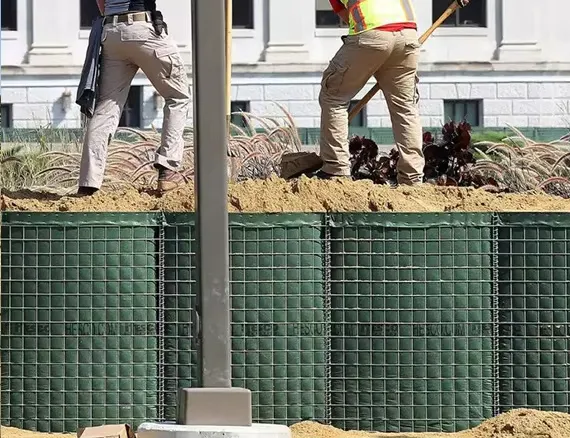

Fill Materials: Load sand, soil, gravel, or other fill materials (mechanized loading possible).

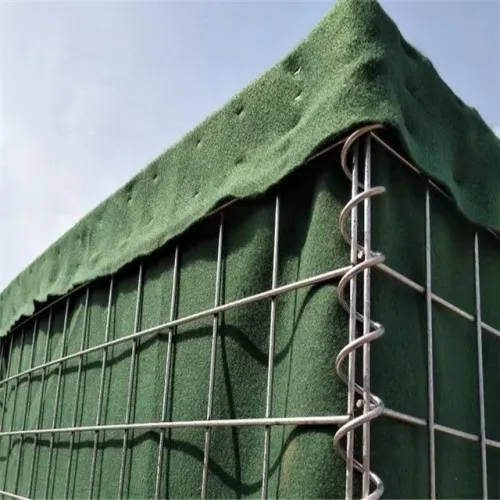

Final Reinforcement: Cover tops or sides with rainproof fabric or camouflage nets if required.
⚙️ No specialized crew needed — a team of 2-3 people can complete setup of a protected zone within hours.

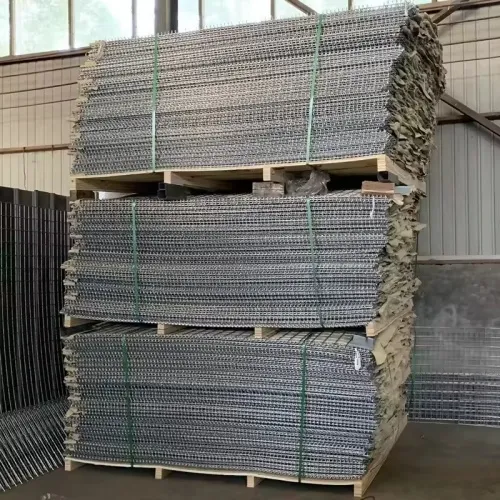

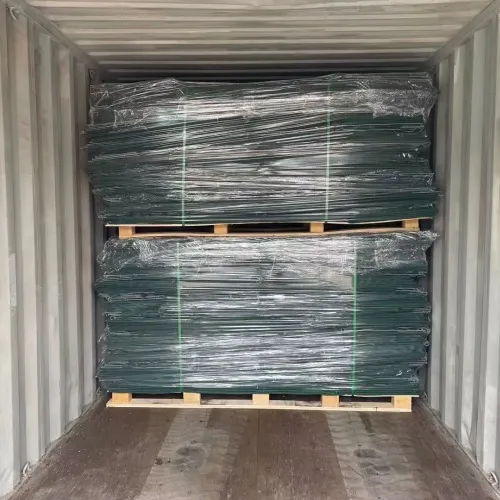

PACKING & DELIVERY
Why Choose Us?
Factory Direct Pricing: Operate from a 10,000㎡ modern production facility, ensuring competitive prices through direct sales
Strict Quality Control: ISO 9001 certified, with 100% inspection before shipment
International Project Experience: Successful deployments in Middle East, Africa, South America for military and disaster relief projects
Fast Response and Delivery: Standard products stocked and ready for quick shipment
Customizable Solutions: Tailored sizes, structures, colors, and packaging available to meet specific requirements
Frequently Asked Questions
Q1: What level of explosive force can the product withstand?
A: Each filled defensive barrier unit can resist blasts equivalent to several kilograms of TNT, depending on unit thickness and filler density. Detailed test reports are available.
Q2: Is the product fire-resistant?
A: Yes. The inner lining uses flame-retardant materials compliant with multiple military standards, suitable for high-temperature or flammable environments.
Q3: Can the dimensions be customized?
A: Absolutely. We provide custom lengths, heights, mesh sizes, colors, and fabric types to fit various project demands.
Q4: What is the delivery lead time?
A: Standard models ship within 5-7 days. Large orders or customized products may require 10-20 days depending on production schedules.
Q5: What shipping methods are supported?
A: The foldable design allows compact packaging, supporting sea freight, rail, air cargo, and other transport modes to optimize shipping costs.
Have questions or need a custom solution?
Our expert team is ready to assist you with tailored options and detailed technical support.
Contact us today for a free consultation and competitive quotation!
