Heavy Chain Link Fencing

Heavy Galvanized Chain Link Fence with Barbed Wire for Enhanced Strength and Security

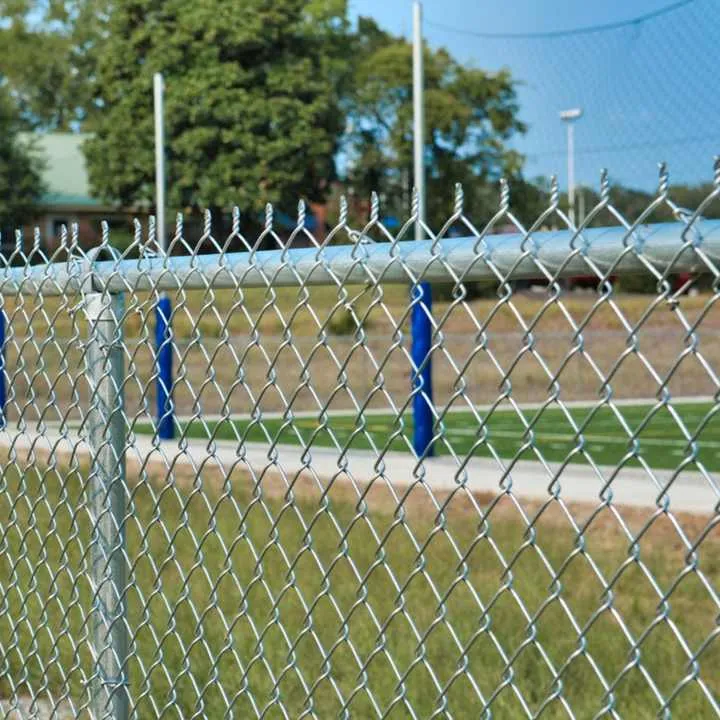

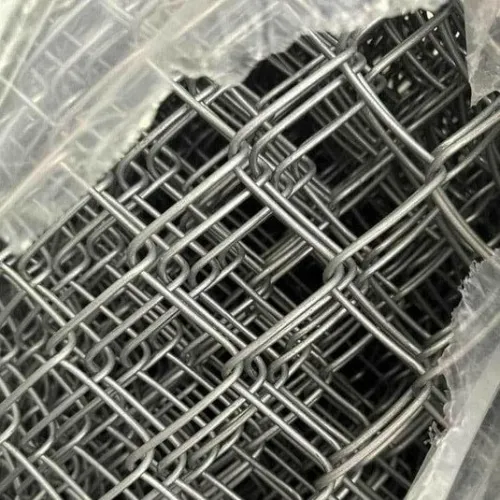

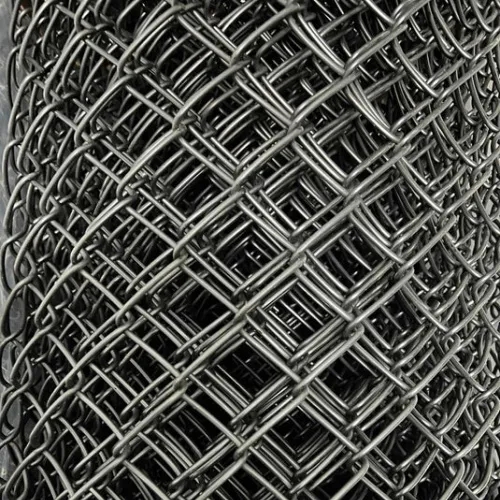

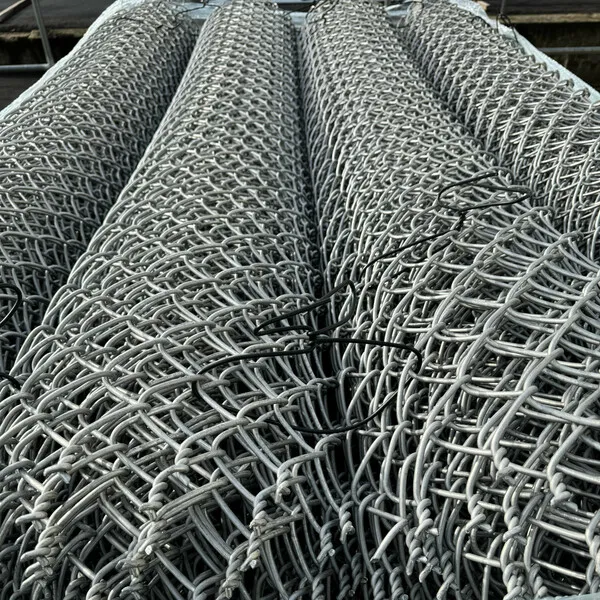

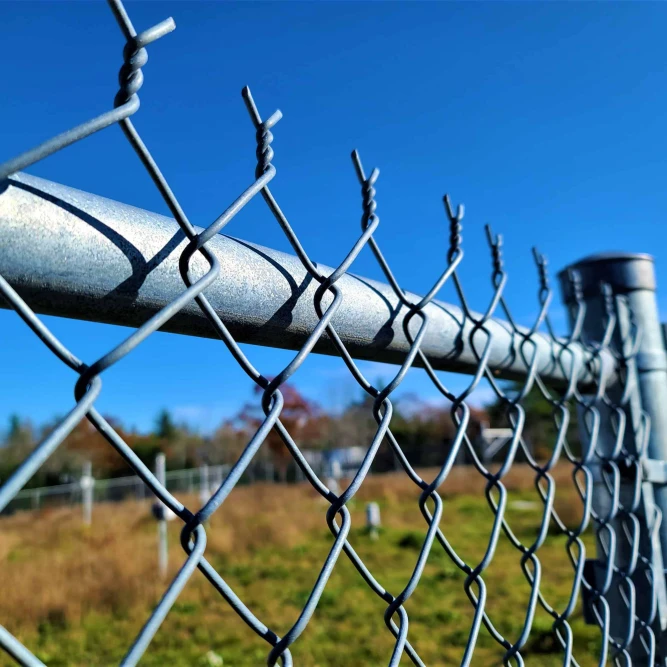

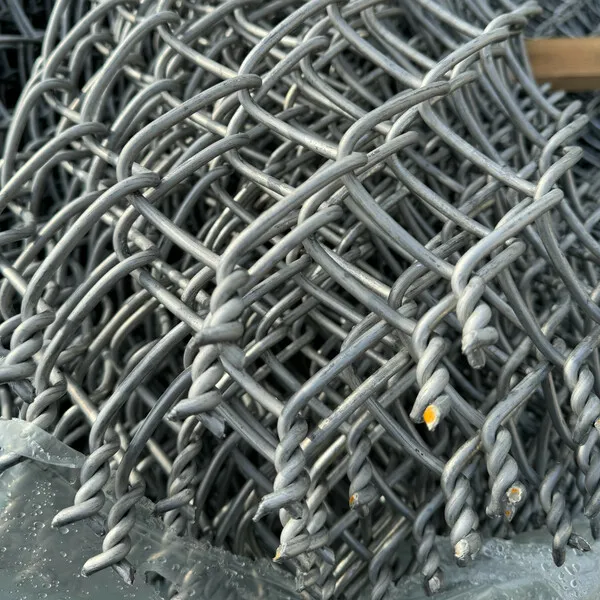

Chain-Link Fabric: Typically made from heavy galvanized steel wire with a diameter of 3.76 mm and a mesh size of 50 x 50 mm. The fabric is often 2.40 meters in height, featuring a barbed selvage and supplied in 15-meter rolls.

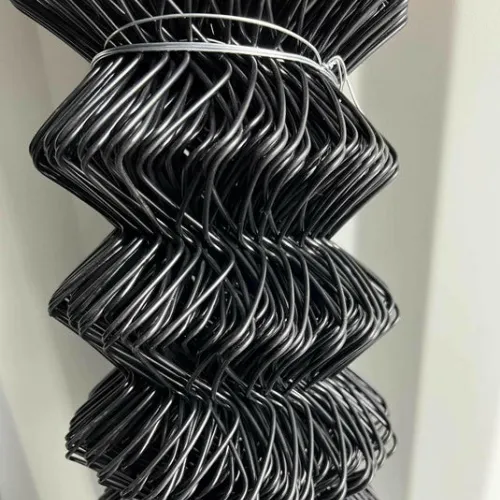

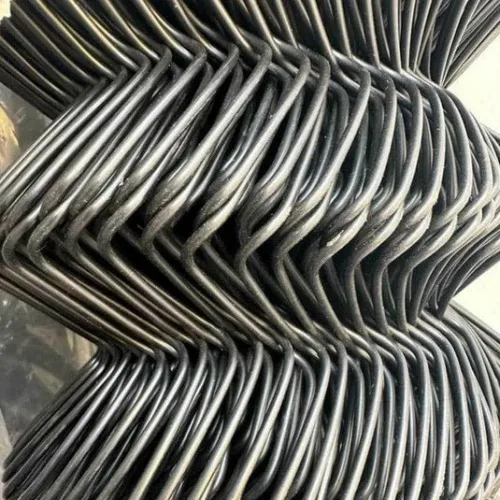

Coatings: Chain-link fences can be galvanized for corrosion resistance, vinyl-coated for enhanced aesthetics and additional protection, or made from stainless steel for superior durability. Galvanized steel is coated with a layer of zinc to prevent rust, with options for electro-galvanization or hot-dip galvanization. PVC-coated steel provides further protection and comes in various colors.

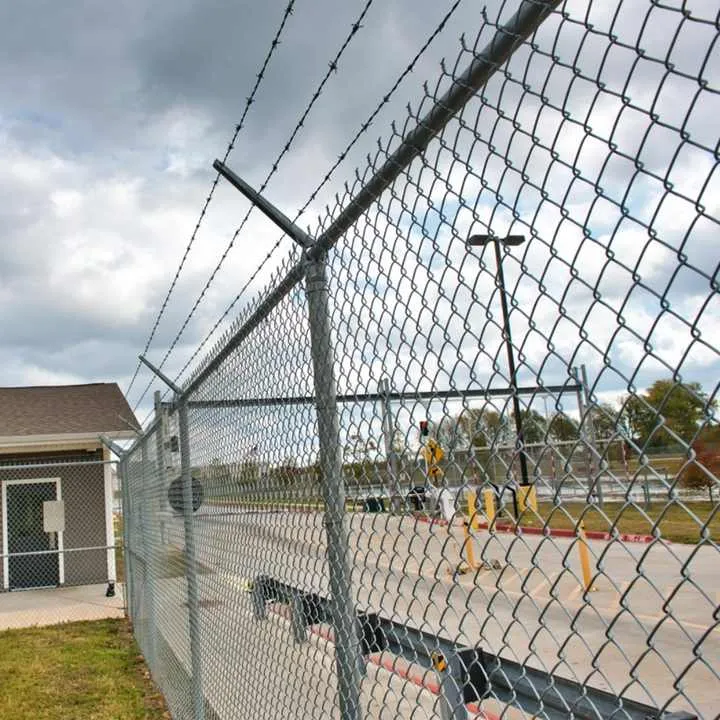

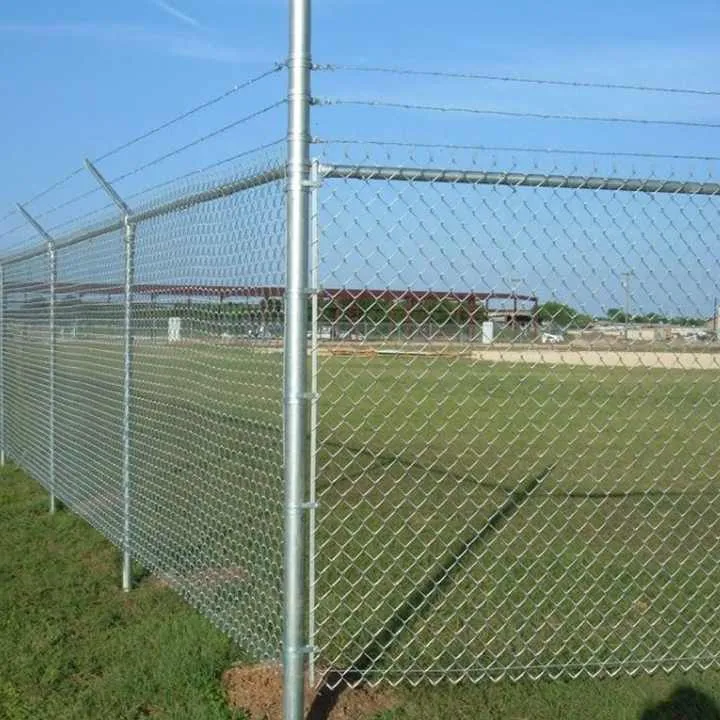

Posts: Line posts are made from galvanized steel with specific dimensions (e.g., 60.3 mm outer diameter x 3.91 mm wall thickness x 3.20 meters long) and include a 'V' shaped extension arm for barbed wire. Pull posts and corner posts have similar specifications but include additional bracing and fittings.

Framework: The framework consists of metal tubes (rails) welded at the corners, with optional vertical or cross-shaped braces for added strength. Industrial fencing often uses a heavier framework (SS40) for maximum strength and longevity.

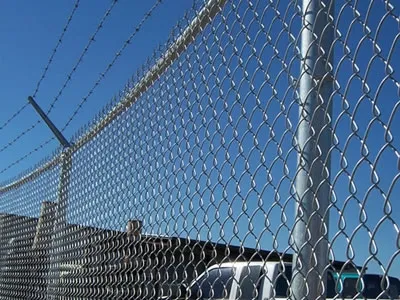

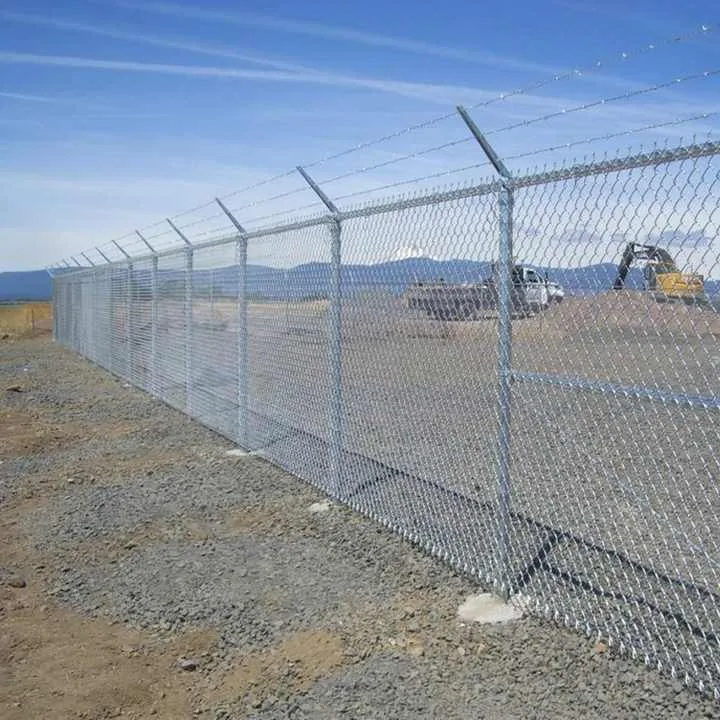

Wires: Tension wire (3.76 mm diameter) is used for added support, and galvanized barbed wire (2-ply, 4-point) is added for increased security.

Security Enhancements

Increased Height: Increasing the fence height is a simple way to deter intruders.

Bottom Rail: Fortifying the fence base with a bottom rail adds stability.

Buried Mesh: Burying the chain-link mesh makes it more difficult to dig under the fence.

Fence Toppers: Adding fence toppers like barbed wire increases deterrence.

Anti-Ram Additions: Fortification using anti-ram additions.

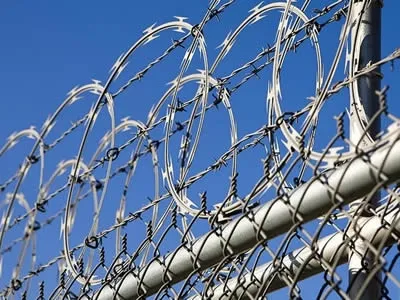

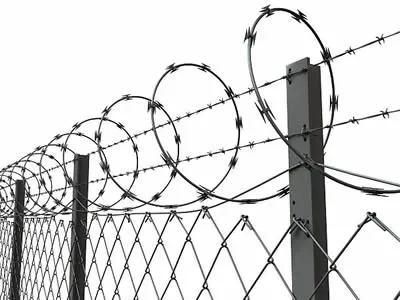

Barbed Wire/Razor Wire: For high-security applications, barbed wire or razor wire can be added to the top of the fence. Heavy-duty arms can be installed on the fence posts to support the razor barbed wire.

Benefits Of Heavy chain link fencing

Durability: Galvanized and stainless steel chain-link fences are known for their strength and resistance to corrosion.

Cost-Effectiveness: Chain-link fencing is a cost-effective security solution, especially for large areas.

Visibility: The open mesh design allows for easy monitoring of the secured area.

Versatility: Chain-link fences can be customized with different heights, coatings, and security features to meet specific needs.

Heavy chain link fencing application With Razor Barbed Wire

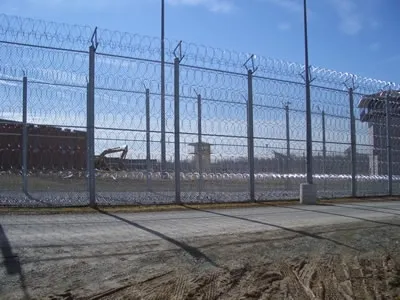

High-Security Areas: Prisons, military facilities, government facilities, nuclear plants, and airports.

Commercial Properties: Parking lots, warehouses, retail properties, and commercial building boundaries.

Industrial Sites: Construction sites, factories, manufacturing plants, power plants, utility facilities, and storage facilities.

Residential Properties: Perimeter fencing, pet enclosures, and garden protection.

Other: Roadways, railways, ports, chemical plants, stadiums, warehouses, security facilities, hospitals, medical facilities, and schools.

If you need reliable, durable and highly secure chain link fencing solutions, please contact Bangjun Metal immediately. We have a professional sales team. Tell us your requirements and we will find the perfect solution for you.
